OPTIONAL
SPINDLE |
|
|
| Max
RPM |
10,000 |
10,000 |
| Max HP
Rating |
0.500
(1/2) |
0.37285kW |
|
AXIS MOTORS
THRUST |
|
|
| Max
Rating X, Y and Z |
145
Oz-Inch |
|
|
FEED RATES |
|
|
| Max
Cutting |
50"
per Min |
1524
mm/min |
|
ACCURACY |
|
|
|
Positioning |
0.00025" |
0.00635 mm |
|
Repeatability |
0.00025" |
0.00635 mm |
|
GENERAL |
|
|
|
Shipping Weight |
70 LBS |
32 kg |
| Power
Required |
110 V AC |
|
|
|
TRAVELS |
INCHES |
METRIC |
| Maximum X Axis |
10.0" (Option
12") |
302.26 mm |
| Maximum Y Axis |
8.0" |
127.00 mm |
| Maximum Z Axis |
10.0" |
152.40 mm |
|
STANDARD TABLE |
|
|
| Length |
16.0" (Option
18") |
304.8 mm |
| Width |
4.0"
|
101.6 mm |
| T-Slot Width |
0.500" |
12.70 mm |
| T-Slot Center
Distance |
|
|
| Number of T-Slots |
3 |
3 |
|
STANDARD SPINDLE |
|
|
| Type |
#1 Morse Taper |
|
| Max RPM |
10,000 |
10,000 |
| Drive System |
Belt |
Belt |
| Max HP Rating |
0.200 (1/5th) |
0.14914 kW |
|

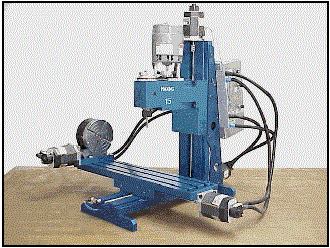

 The MAXNC 15 CL2 is a closed loop
system using the new CL2 motion system for control. It runs 4 axes from
a single parallel port from any PC under Windows. The control reads the
encoders at a rate of over 60,000 times a second and the feed-back is
analyzed by the software. Based on the position of the encoders, the
outputs to the motors are advanced, retarded or modified as needed. The
speed at which the software operates also allows the control of the
spindle motor speed from the CNC program. The machine comes equipped
with combination HOME and LIMIT switches and a socket for the 3D
digitizer.
CONTROL FEATURES:
· MAX III software available January 30, 2008.· "G" & "M" code
programming · 0.00025" resolution · Linear interpolation ·
Circular interpolation · Helical interpolation · Backlash compensation ·
Keyboard jog mode · Automatic cycle · Line by line cycle · Tool length
and tool radius compensation table · Spindle motor on and off ·
Spindle speed control from program · Screen update and
acceleration/deceleration inhibit (G64) for in-interrupted contouring,
and more.
Includes software package
with a mini CAM system for automatic NC program creation from CAD (DXF
files).
A 3d digitizing probe and
software is available which includes a teach mode and a screen plot of
the object being digitized. An optional 4" diameter rotary table and
drive motor is also available to make it a full 4 axis
system.
|
