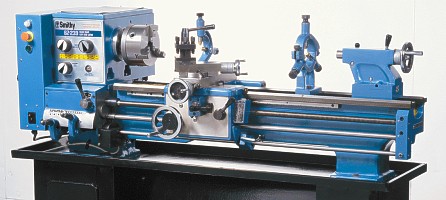

CZ-239 The CZ-239 is for machinists who work with longer workpieces

Description:

Get professional performance with this 39" gear-head lathe. The CZ-239 is for machinists who work with longer workpieces, like gunsmiths and auto shops. When you need professional features like 36" between centers, a 1.44" spindle bore, and removable gap bed, then the CZ-239 is for you.

Benefits of our large-capacity, gear-driven lathe:

Work quickly and easily with the quick-change gearbox.
Cut smoothly and precisely with the cross-slide and longitudinal powerfeeds.
Cut tapers efficiently with the offset tailstock.
Ideal for gun barrels and axles. Turn workpieces up to 39" long with gear-driven power.
Tackle workpieces up to 1-1/2 ft in diameter with the removable gap bed

CZ-239 Specifications

Machine dimensions:
63" L, 24" W, 24" H
Crate dimensions:
70" L, 30" W, 30" H
Weight:
shipping 1100 lb;
machine 850 lb
Power:
1.5 hp, 110 volt
Swing over bed:
12"; with gap, 18"
Swing over table:
5.5"
Distance between centers:
39"
Bed length:
58"
Bed width:
7.2"
Spindle bore:
1.44" Tailstock spindle travel:
3.6"
Cross-slide travel:
5.5"
Toolpost travel:
3.5"
Table travel:
31.5"
Headstock taper:
MT5
Tailstock taper:
MT3
Spindle speeds:
nine (64 to 1500 rpm)
Standard and metric threading;
cuts left-hand threads
Inch:
50 threads, 4 to 112 tpi
Metric:
24 threads, 0.25 to 7.5 mm
