TINALab II High Speed Multifunction PC
Instrument
With
TINALab II you can turn your laptop
or desktop computer into
a powerful, multifunction test and
measurement
instrument. Whichever
instrument you need multimeter,
oscilloscope,
spectrum analyzer, logic
analyzer, arbitrary waveform generator,
or digital signal
generator it is at your fingertips with a
click of the mouse. In
addition TINALab II can be used with
the for
comparison of simulation
and measurements as a
unique tool for circuit development,
troubleshooting,
and the study of analog
and digital electronics.
More information

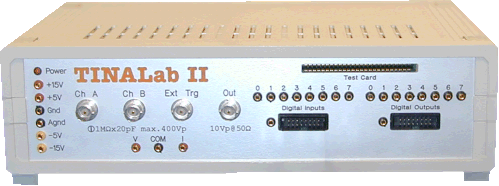

TINALab II High Speed
Multifunction PC Instrument
TINALab II includes a DC
to 50MHz bandwith, 10/12 bit resolution,
dual-channel Digital
Storage Oscilloscope. Due to its advanced
equivalent-time sampling
technology,
TINALab can acquire any
repetitive signal with up to 4GS/s
equivalent
sampling rate, while in
single shot mode the sampling rate is
20 MS/s. The full scale
input range is �400V, with 5mV to 100V/div
ranges.
The synthesized Function
Generator provides sine, square, ramp,
triangle and arbitrary
waveforms from DC to 4MHz, with logarithmic
and linear sweep, and
modulation up to 10V peak to peak.
Arbitrary
waveforms can be
programmed via the high level, easy to use
language of TINA's
Interpreter.
Working automatically in
conjunction with the Function Generator,
the Signal Analyzer
measures and displays Bode amplitude and
phase diagrams, Nyquist
diagrams, and also works as Spectrum
Analyzer.
Digital I/O for the high-
tech Digital Signal Generator and Logic
Analyzer instruments
allow fast 16-channel digital testing up
to 40MHz.
The optional Multimeter
for TINALab II allows DC/AC measurements
in ranges from 1mV to
400V and 100 �A to 2A. It can also measure
DC resistance in ranges
from 1W to
10MW.
Using TINALab II with
TINA gives you the unique capability to
have circuit simulation
and real time measurements in the same
integrated environment.
This provides an invaluable tool for
troubleshooting and
brings your designs to life by comparing
simulated and measured
results.
You can also plug
Experimenter Modules into the slot on the
front of TINALab II,
allowing you to simulate, measure, and
troubleshoot virtually
the whole range of analog and digital
electronics.
Real-time
Storage
Oscilloscope
Observe the actual time response
of your
circuit. Set up the
Function Generator for waveform, amplitude,
and frequency, drive
the test circuit, and see the real-time
response along with
thevirtual response of the simulated
circuit.
Real-time Signal
Analyzer
Measure the frequency response
of your circuit
in real-time.
TINALab's Function Generator will
generate a
real swept-sine signal,
capture the response, and display
it on the Signal
Analyzer, where it can be compared to the
virtual (simulated)
measurements.
Real-time Logic
Analyzer
Set up
the test stimulus for your logic circuit
with the Digital Signal
Generator and see eight channels of
your circuit's real-
time digital response on the Logic
Analyzer.
|
