Here is what you get:

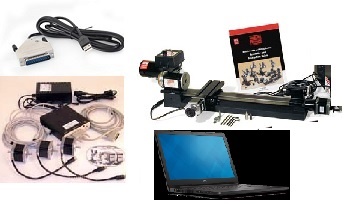

- The 8440 CNC Package Includes:
4400 lathe with two stepper motors fitted to
stepper motor mounts on the leadscrew and crosslide axes (The tailstock spindle
remains manually controlled)
Brand New Dell Laptop + Windows
10 + MACH4 software with life long license installed!
PN 8760 Drivers, power supply and cables installed with 4 axes drive: X, Y, Z
and A. (Add optional 4th axis rotary table, P/N 8730).
Instruction and utility CD. The CD includes complete instructions, and several
free utilities to translate CAD files or TrueType fonts into G-code.
USB CNC controller
which works seamlessly with the Sherline 8760 CNC
controller.
1-year warranty on all components for non-production use. 90-day warranty on CNC
and computer-related components. (Dell provides extended warranty up to 3
years.)
Just in case you need it we shall also Free Linux OS CD + EMC 4-axis control
software CD will be included as well (in case you wish to install it on another
PC)
Standard equipment for the model 8440
(8441 metric) lathe includes:
A powerful 90V DC motor with electronic speed controller
2.75″ (70mm) x 6.0″ (152mm) crosslide
24″ (610mm) steel bed that has 17″ (431mm) between centers
Three standard 1-5/8″ (41mm) laser engraved aluminum handwheels mounted on the
stepper motors and tailstock. Each handwheel has laser engraved aluminum
handwheel collars
Rocker tool post (P/N 3057) substituted for the standard tool post used on the
short-bed lathes
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal
keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire
power cord, and instruction manual
Available with red handwheels upon request.
4400 (4410 Metric) Specifications
Swing Over Bed 3.50″ (90 mm)
Swing Over Carriage 1.75″ (45 mm)
Distance Between Centers 17.00″ (430 mm)
Hole Through Spindle .405″ (10 mm)
Spindle Nose Thread 3/4″-16 T.P.I.
Spindle Nose Taper #1 Morse
Spindle Runout of Morse Taper .0005″ or less
Travel of Crosslide 4.25″ (110 mm)
Tailstock Spindle Taper #0 Morse
Protractor Graduations 0° to 45° by 5°
Handwheel Graduations .001″ (.01 mm)
Length Overall 36.00″ (914 mm)
Width Overall 11.25″ (286 mm)
Height Overall 8.00″ (203 mm)
Shipping Weight 69 lb. (31.4 kg)
Motor 90 volt DC with electronic speed control that accepts any incoming
current from 100 VAC to 240 VAC, 50 Hz or 60 Hz.
Spindle Speed Range 70-2800 RPM continuously variable by electronic
speed control
CNC stepper motor holding torque 136 oz-in
Maximum CNC travel speed, X and Z 22 inches/min
|
