Here is what you get:

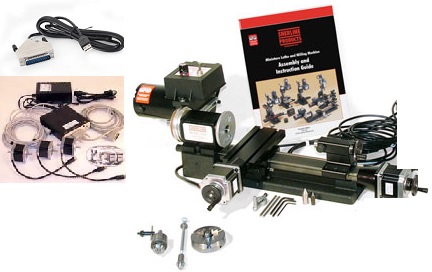

- The 8400A (8410A Metric) CNC Package Includes:
4000 lathe with two stepper motors fitted to
stepper motor mounts on the leadscrew and crosslide axes (The tailstock spindle
remains manually controlled)
Brand New Dell Laptop + Windows
10 + MACH4 software with life long license installed!
- 4000 lathe with two stepper motors fitted
to stepper motor mounts on the leadscrew and crosslide axes (The tailstock
spindle remains manually controlled)
-
The "A" package for the Lathe is included:
1040 3.1″ 3-jaw self-centering chuck
1069 3/8″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with
drawbolt
-
PN 8760 Drivers, power supply
and cables installed with 4 axes drive: X, Y, Z and A. (Add optional 4th
axis rotary table, P/N 8730).
- Instruction and utility CD. The CD includes
complete instructions, and several free utilities to translate CAD files or
TrueType fonts into G-code.
-
USB CNC controller
which works seamlessly with the Sherline 8760 CNC
controller.
- 1-year warranty on all components for non-production use. 90-day warranty on CNC
and computer-related components. (Dell provides extended warranty up to 3
years.)
Just in case you need it we shall also Free Linux OS CD + EMC 4-axis control
software CD will be included as well (in case you wish to install it on another
PC)
Standard equipment for the model
8400 (8410 metric) lathe includes:
- A
powerful 90V DC motor with
electronic speed controller
-
2.75″ (70mm) x 6.0″ (152mm)
crosslide
- 15″
(381mm) steel bed to allow 8″
(203mm) between centers
-
Three standard 1-5/8″ (41mm) laser
engraved aluminum handwheels mounted
on the stepper motors and tailstock.
Each handwheel has laser engraved
aluminum handwheel collars
-
Pulleys, drive belt, faceplate,
lathe dog, two dead centers, three
hexagonal keys, tool post, sharpened
high-speed steel cutting tool,
eight-foot three-wire power cord,
and instruction manual
-
Available with red handwheels upon
request
4000 (4010 Metric) Specifications
-
A powerful
90V DC motor with electronic
speed controller
-
2.75″ (70mm)
x 6.0″ (152mm) crosslide
-
15″ (381mm)
steel bed to allow 8″
(203mm) between centers
-
Three
standard 1-5/8″ (41mm) laser
engraved aluminum handwheels
mounted on the stepper
motors and tailstock. Each
handwheel has laser engraved
aluminum handwheel collars
-
Pulleys,
drive belt, faceplate, lathe
dog, two dead centers, three
hexagonal keys, tool post,
sharpened high-speed steel
cutting tool, eight-foot
three-wire power cord, and
instruction manual
-
Available
with red handwheels upon
request.
|
- FREE support by phone
800-621-8334 to get you started with your CNC.
- FREE SHIPPING in the main land USA (50% off
FedEx prices otherwise.)
|
