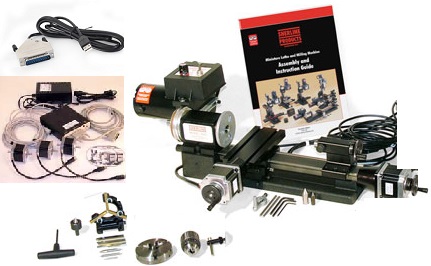

8400B-Windows (8410B-Windows) Brand New Dell Laptop + MACH4 software License installed + 3.5″ x 8″ CNC Machine Lathe with "B" package fitted with two double shafted stepper motors with handwheels mounted + PN 8760 CNC drivers for 4 axes + USB CNC controller.

4000 lathe with two stepper motors fitted to stepper motor mounts on the leadscrew and crosslide axes (The tailstock spindle remains manually controlled)
Brand New Dell Laptop + Windows 10 + MACH4 software with life long license installed!

4000 lathe with two stepper motors fitted to stepper motor mounts on the leadscrew and crosslide axes (The tailstock spindle remains manually controlled
The "B" package for the Lathe is included:
1041 2.5″ 3-jaw self-centering chuck

1072 1/4″ tailstock drill chuck w/ key, #0 Morse arbor, #1 Morse arbor with drawbolt

1074 Steady rest

1191 Live Center

3002 Cutoff Tool and Holder

3007 3-pc 1/4″ HSS Cutting Tool Set (LH, RH, Boring)The "A" package for the Lathe is included

3020 5/32″ T-driver

3021 3-pc Center Drill Set

5327 Sherline Accessories Shop Guide Book (224 pages, B/W)
PN 8760 Drivers, power supply and cables installed with 4 axes drive: X, Y, Z and A. (Add optional 4th axis rotary table, P/N 8730).
Instruction and utility CD. The CD includes complete instructions, and several free utilities to translate CAD files or TrueType fonts into G-code.
USB CNC controller which works seamlessly with the Sherline 8760 CNC controller.
1-year warranty on all components for non-production use. 90-day warranty on CNC and computer-related components. (Dell provides extended warranty up to 3 years.)

Just in case you need it we shall also Free Linux OS CD + EMC 4-axis control software CD will be included as well (in case you wish to install it on another PC)

Standard equipment for the model 8400 (8410 metric) lathe includes:

A powerful 90V DC motor with electronic speed controller
2.75″ (70mm) x 6.0″ (152mm) crosslide
15″ (381mm) steel bed to allow 8″ (203mm) between centers
Three standard 1-5/8″ (41mm) laser engraved aluminum handwheels mounted on the stepper motors and tailstock. Each handwheel has laser engraved aluminum handwheel collars
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual
Available with red handwheels upon request

4000 (4010 Metric) Specifications

A powerful 90V DC motor with electronic speed controller
2.75″ (70mm) x 6.0″ (152mm) crosslide
15″ (381mm) steel bed to allow 8″ (203mm) between centers
Three standard 1-5/8″ (41mm) laser engraved aluminum handwheels mounted on the stepper motors and tailstock. Each handwheel has laser engraved aluminum handwheel collars
Pulleys, drive belt, faceplate, lathe dog, two dead centers, three hexagonal keys, tool post, sharpened high-speed steel cutting tool, eight-foot three-wire power cord, and instruction manual
Available with red handwheels upon request.

FREE support by phone 800-621-8334 to get you started with your CNC.
