Features.

Import AutoCAD DXF files.

• Contour.
• Pocket.
• Dril.
• Automatically detects islands and nested islands
• Multiple Depths - Islands on top of islands inside boundaries...etc.
• Wall Profiles - Any region can have any wall profile
• Automatically chains entities into optimised regions
• Programmable Post Processor
• Automatically vectorizes DXF Text
• Add True Type Font Text (comes with a single line TTF) around an Arc etc.

• Multiple Passes with Rough or Finishing in the X or Y direction.
• Add Margin.
• Male or Female toolpath generation.

Import computer image files

• Import TIF, GIF, JPEG, PCX, BMP, RLE, ICO, CUR, PNG, EMF, WMF, TARGA, PPM, AVI.

• Invert, Resize (BSpline, Lanczos3 etc.), Crop, Contrast, Brightness, 3x3 Filters, Bump Map.
• Wave, Lens, Morphing, Rotate, Reduce Colors etc.

• Carve with or without cutter comp using End, Ball, or Vee cutters.
• Efficient Toolpath Generation with Multiple passes and Margin avoidance.
• X or Y raster direction.
• View Rendered Carving or Wireframe Toolpaths without swicthing to the 3D Editor.

• Raster to vector conversion at any color depth.
• Built in Topography Engraving at a single depth or Multiple depths.
• Point Reduction, Curve Fitting, and Small Region Filtering improves quality of Toolpaths and reduces overall toolpath count.

• Import RS274X Extended Gerber and Excellon Drill files.

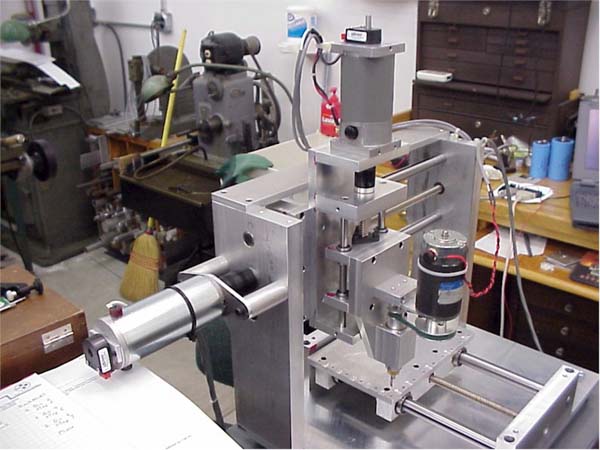

• Route and Drill PCB in one operation.
• Spot Drill using Routing Tool.
• Board Cut Out when finished.

• Uses external Controller Board for timing and Interpolation functions (Option).
• Runs smoothly on any system that can comfortably run Windows (95, 98, Me, XP, NT, 2000).
• Toolpath location graphically updated in real time and in 3D.
• Fast block processing when previewing (more than 50,000 Blocks/sec on a P600).
• Fast Block Processing when machine is running (over 300 Blocks/Sec).
• User defined jog distances.
• True Linear Acceleration Ramp (programmable) throughout the 30 - 40,000 SPS range.
• True 3 axis interpolation.
• +-8.3 Million step Absolute positioning.
• 51 move First In/First Out Buffer.
• RS232 Intelligent Controller running at 115K Baud.
• Continuous Motion Contouring.
• Solid part viewing with Gouge Checking using OpenGL.
• Mist, Flood, CW, and CCW outputs.
• PWM Output for Spindle Speed Control.
• Requires same Screw Pitch on X and Y Axis for Circular Interpolation
• Requires 9 pin Serial Cable.
• Requires 8-20 Vdc external power supply and enclosure.

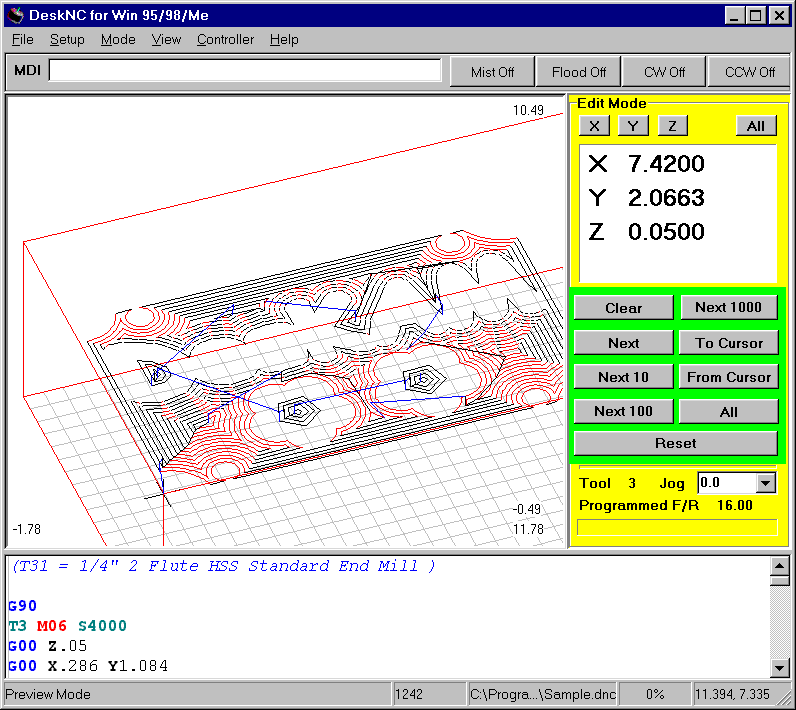

• Integrated 3D Editor with real time zoom, pan, and rotate
• Syntax highlighted editor
• Step through Toolpath verification
• 3D Rendered part display.
