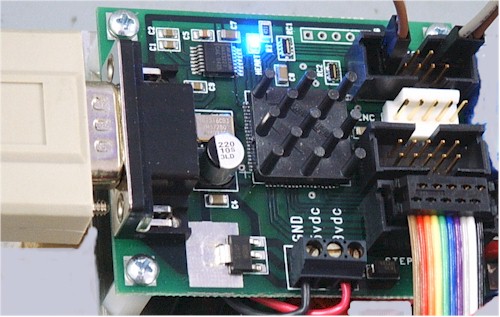

DeskCNC 2nd Generation Controller Board
| |
The DeskCNC 2nd Generation Controller utilizes a microcontroller
to perform the timing and interpolation functions for smooth operation
under Windows.
- Runs smoothly on any system that can comfortably run Windows
(95, 98, Me, XP, NT, 2000).
- Fast Block Processing when machine is running (over 300 Blocks/Sec).
- True Linear Acceleration Ramp (programmable) throughout the
60 - 125,000 SPS range.
- Any Accel Profile is programmable.
- True 4 axis interpolation.
- +-2 Billion step Absolute positioning.
- 230 move First In/First Out Buffer.
- RS232 Intelligent Controller running at 115K Baud.
- Continuous Motion Contouring.
- Mist, Flood, CW, CCW, AUX1, AUX2, and AUX3 outputs.
- PWM Output for Spindle Speed Control.
- Single Channel Quadrature Encoder input.
- Flash reprogrammable firmware updates.
- Requires 9 pin Serial Cable.
- Requires 9 Vdc external power supply and enclosure.
|
